12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

Shenzhen ZhaoWei Machinery & Electronics Co. Ltd.
Contact Now

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

Brand Name : Zhaowei

Model Number : ZWSMD012012

Certification : ROHS/ISO9001/ISO14001/SGS/TS16949

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5 000 pcs per day

Delivery Time : 15 working days after payment

Packaging Details : packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing

Type : DC motor brush

Voltage : 12V or customized

Application : Optical equipment, Medical Application, Electronic switch(lock), Toy, Robot, Electric toothbrush, E-cigarette, and etc.

Diameter : 12mm

Reduction Ratio : 1296 or customized

Rated Load Torque : 550 gf.cm

Rated Load Speed : 8rpm

No Load Speed : 9rpm

No Load Current : 95mA

tolerance : 0.3mm

Contact Now

Replace maxon Industrial 12mm Plastic Planetary Gearbox for Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

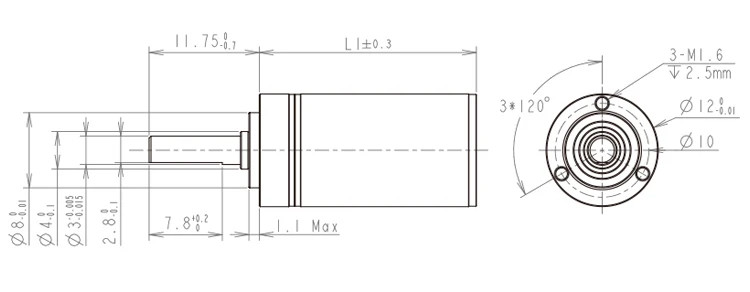

ZWSMD012012 12mm gearbox data
Gearbox number 2 3 4
Continuous output torque 0.25 0.3 0.35 Nm
Instant mobilization torque 0.3 0.38 0.41 Nm
Reduction ratio 16/21/26/28/35

62/83/103/111/

138/150/172/186/231

243,326,406,439,546,590,679,734,794,913,987,

1135,1227,1526

/
Outer diameter 12mm mm
Gearbox length 17.5 23.2 27.6 mm
Maximum efficiency 75 65 55 %
Recommended temperature range -40~+100 -40~+100 -40~+100
Gearbox weight (MAX) 12.4 15.5 18.6 G
Maximum transmission power 2.2 1.1 0.6 W
Air load average empty return 2.8 1.4 0.8 W
Air load average empty return 1.5 2.2 2.5 °
The maximum axial load 20 20 20 N
The maximum radial load 45 60 60 N
Output Bearing Pearl bearing
Axial gap 0~0.1 mm
*Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements.

ZWSMD012012 12mm High-performance gearbox motor

Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements

ZWSMD012012 Motor Data 12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment
Product model ZWSMD012012
Environmental temperature -40 ...+100 ℃
Maximum transmission power 2.2W
Maximum continuous torque 0.35nm
Maximum continuous input speed 16000RMPM
Output terminal bearing Rolling Pearl Bearing

model Rated voltage (V) Air load data Load data

Total length

(mm)

Gearbox rated torque

(NM)


Gearbox instantaneous torque(NM)

Reduction ratio


gearbox length L1

(mm)

Air -load speed(rpm) No-load current(mA max)

Load speed

(rpm)

Load current(A Max)

Torque

(gf.cm)

ZWSMD012012-16 12 1836 117 1836 1 0.028 43.5 0.25 0.3 16 17.5
ZWSMD012012-21 12 1365 117 1365 1 0.037 21
ZWSMD012012-26 12 1098 117 1098 1 0.046 26
ZWSMD012012-28 12 1015 117 1015 1 0.050 28
ZWSMD012012-35 12 816 117 816 1 0.063 35
ZWSMD012012-62 12 465 117 465 1 0.095 49.2 0.3 0.38 62 23.2
ZWSMD012012-83 12 346 117 346 1 0.128 83
ZWSMD012012-103 12 278 117 278 1 0.159 103
ZWSMD012012-111 12 257 117 257 1 0.172 111
ZWSMD012012-138 12 207 117 207 1 0.214 138
ZWSMD012012-150 12 191 117 191 1 0.231 150
ZWSMD012012-172 12 166 117 166 1 0.266 172
ZWSMD012012-186 12 154 117 154 1 0.288 186
ZWSMD012012-231 12 124 117 124 1 0.357 231
ZWSMD012012-243 12 118 117 118 0.8 0.318 53.6 0.35 0.35 243 27.6
ZWSMD012012-326 12 88 117 71 0.8 0.350 326
ZWSMD012012-406 12 70 117 60 0.8 0.350 406
ZWSMD012012-439 12 65 117 56 0.8 0.350 439
ZWSMD012012-546 12 52 117 47 0.8 0.350 546
ZWSMD012012-590 12 48 117 44 0.8 0.350 590
ZWSMD012012-679 12 42 117 38 0.8 0.350 679
ZWSMD012012-734 12 39 117 36 0.8 0.350 734
ZWSMD012012-794 12 36 117 33 0.8 0.350 794
ZWSMD012012-913 12 31 117 29 0.8 0.350 913
ZWSMD012012-987 12 29 117 27 0.8 0.350 987
ZWSMD012012-1135 12 25 117 24 0.8 0.350 1135
ZWSMD012012-1227 12 23 117 22 0.8 0.350 1227
ZWSMD012012-1526 12 19 117 18 0.8 0.350 1526
*The above specifications are for reference only. If there is no further notice, please ask the customer to ask before placing an order.

#ZHAOWEI drives system to serve the innovation market
In 2024, we introduced new high-performance gear motors for medical, automotive, precision instruments, aerospace, industrial equipment and other demanding fields.
Product and process innovation and a consistently high level of expertise are the driving forces behind ZHAOWEI's success in demanding applications.

We can provide High-performance gearbox motor

6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment
12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

Application:

Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.

Product Show:

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;

batch order leading time according to the actual situation.

Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products

  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.

Production&Equipment

12mm 12v High Torque Plastic Planetary Dc Gearbox Motor For Electric Optical Equipment

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry
